Printout
 | This page is in progress Please check back later for additional changes. |
This menu integrates all Printout commands and templates available in the software. Opening the main page and clicking on Printout, the following commands will be displayed (see Figure 4.14):
<placeholder: Figure 4.14: Printout menu.>
Participant Lists
It enables the user to print all the Participants in the tournament (see Figure 2.40 and Figure 2.41 in Par. 2.4).
Statistics
This command prints all the Statistics about the competition (see Figure 2.37 in Par. 2.4).
Div/Class Result List
From this function, the user can print rankings for Qualification Rounds (see Figure 3.11 in Par. 3.1).
Qualification Round Printout
From this command, the user can print Final Rankings for the tournament to be used in the Elimination and Final Rounds (see Figure 3.12 in Par. 3.1).
Final Rounds
This function prints rankings for the Final Rounds, using both Brackets and Final Rankings templates (see Figure 4.15).
<placeholder: Figure 4.15: Rankings Printout for Final Rounds.>
Header for Result Printouts

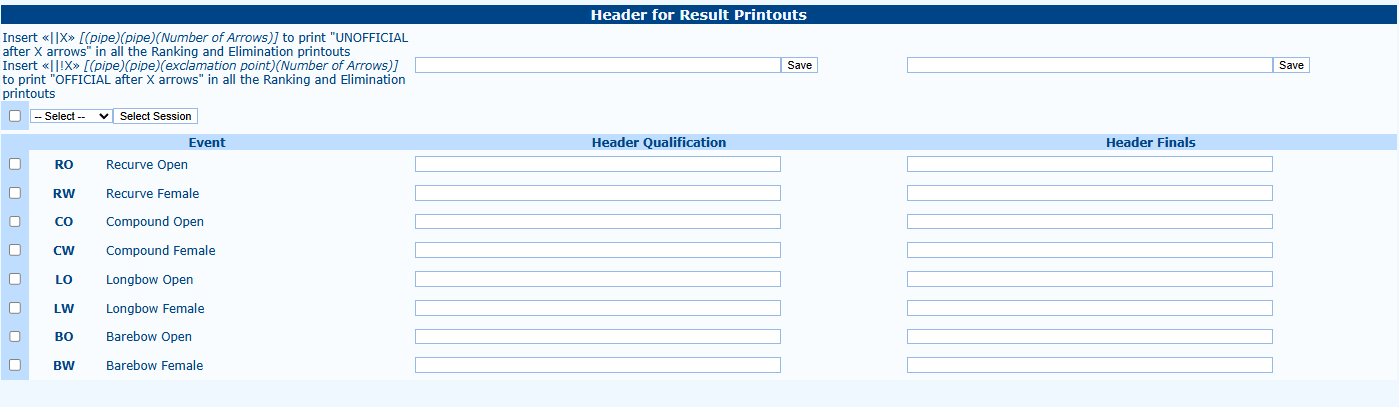

It enables the user to input a row, based on the tournament management (e.g. non-official results), on rankings to be printed, simply selecting the Session and entering the wished text in the empty box (see Figure 4.16).
<placeholder: Figure 4.16: Header for Result Printouts page.>
Awards Ceremony Management

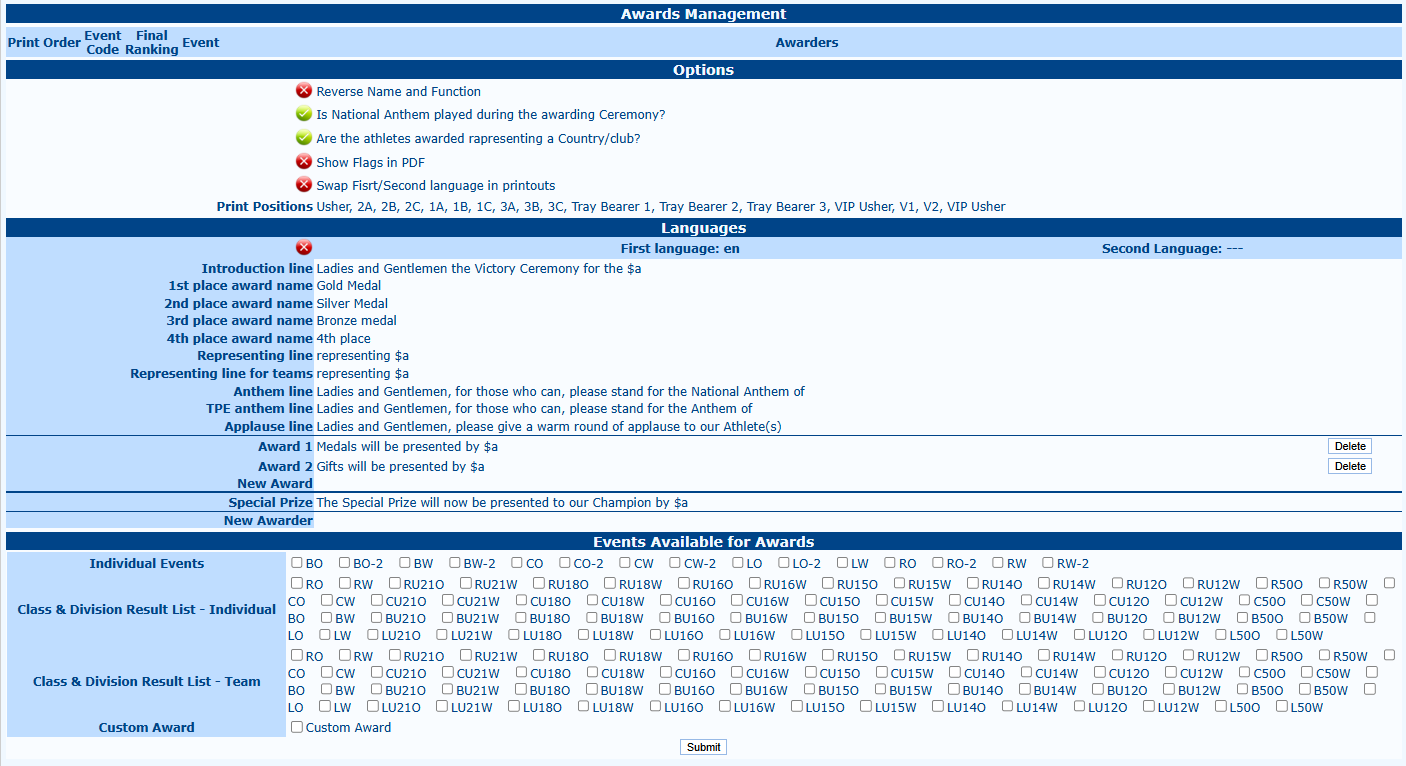

From this section, the user can manage the Awards Ceremony for archers in the tournament, choosing the Number of Awarded Athletes for each event, the Name of the Cup and the Awarder. It is mainly meant for Awards Ceremonies of international competitions and national tournaments (see Figure 4.17).
<placeholder: Figure 4.17: Awards Ceremony Management page.>
Awards Printout
This command prints the Awards Ceremony schedule including Athletes, Awards and Awarders entered in the previous section.
Print Sign

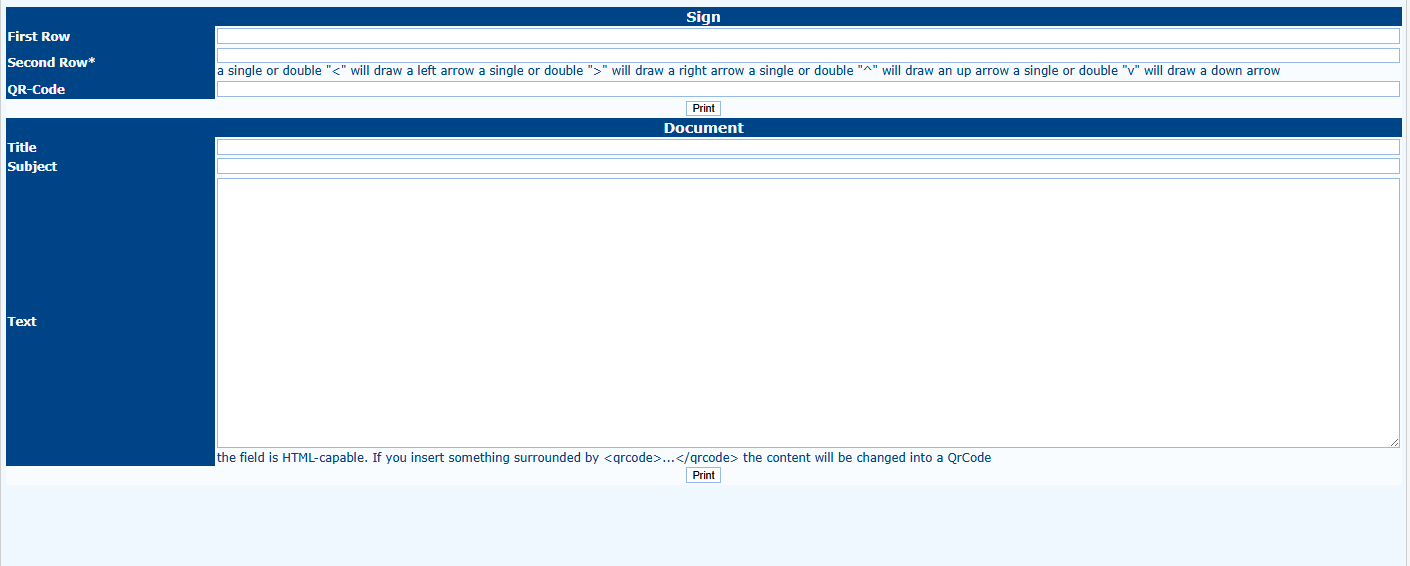

From this section, the user can print any Sign (e.g. any direction) needed for correctly directing athletes on the tournament field. Usually, the first row includes any instructions, and the second one should add any directions. Symbols usually typed in the rows are ‘>’ for the Right Turn Indication, ‘<’ for the Left Turn Indication and ∧∧ for the ‘Go Straight’ Indication. These symbols should be entered without adding any other character. Otherwise, the program will add that alphanumeric character in the print (see Figure 4.18).
<placeholder: Figure 4.18: Printed Sign sample.>
